Name: IAUC24N10S5L300ATMA1
Brand: Infineon Technologies
SKU: IAUC24N10S5L300ATMA1
Price: 1.12 USD
Availability: InStock

REF: IAUC24N10S5L300ATMA1 Infineon Technologies

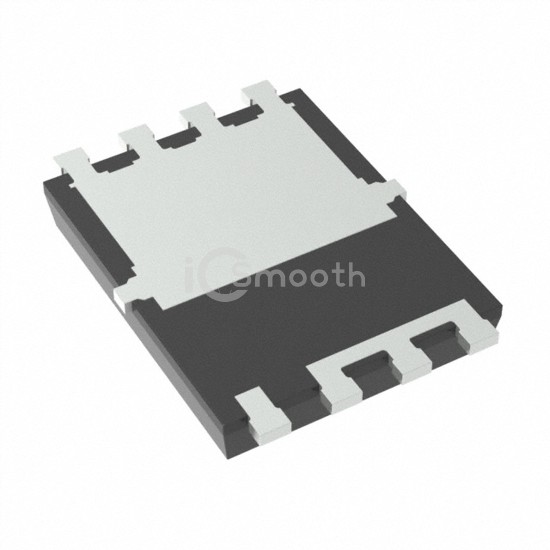

IAUC24N10S5L300ATMA1

Infineon Technologies

MOSFET N-CH 100V 24A TDSON-8-33

IAUC24N10S5L300ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 24A TDSON-8-33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 3,978

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	30mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	2.2V @ 12µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	670 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	38W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-33
Package / Case	8-PowerTDFN
