Name: IAUC120N06S5N017ATMA1
Brand: Infineon Technologies
SKU: IAUC120N06S5N017ATMA1
Price: 2.63 USD
Availability: InStock

REF: IAUC120N06S5N017ATMA1 Infineon Technologies

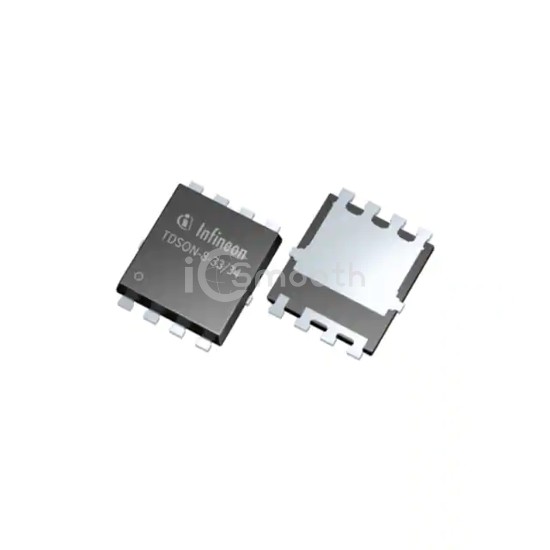

IAUC120N06S5N017ATMA1

Infineon Technologies

MOSFET N-CH 60V 120A TDSON-8-43

IAUC120N06S5N017ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 60V 120A TDSON-8-43. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 4,224

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	120A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	1.7mOhm @ 60A, 10V
Vgs(th) (Max) @ Id	3.4V @ 94µA
Gate Charge (Qg) (Max) @ Vgs	95.9 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6952 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	167W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-43
Package / Case	8-PowerTDFN
