IAUC120N04S6L005ATMA1

In Stock: 5,043

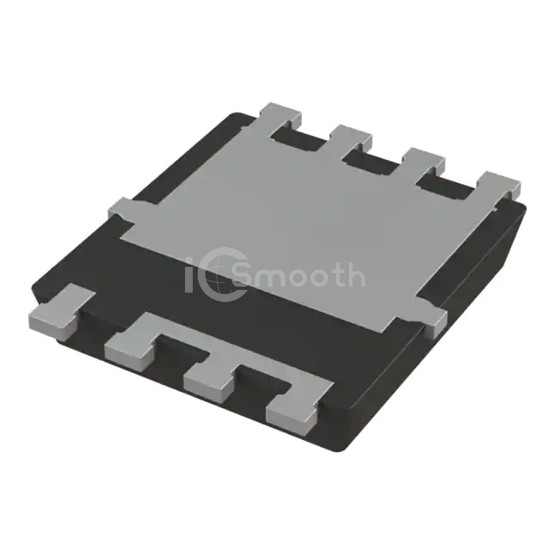

IAUC120N04S6L005ATMA1 - Infineon Technologies - Transistors - FETs, MOSFETs - Single
REF: IAUC120N04S6L005ATMA1 Infineon Technologies
IAUC120N04S6L005ATMA1

Infineon Technologies

IAUC120N04S6L005ATMA1

IAUC120N04S6L005ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. IAUC120N04S6L005ATMA1. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 5,043

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C120A (Tj)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.55mOhm @ 60A, 10V
Vgs(th) (Max) @ Id2V @ 130µA
Gate Charge (Qg) (Max) @ Vgs177 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds11203 pF @ 25 V
FET Feature-
Power Dissipation (Max)187W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8-53
Package / Case8-PowerTDFN
