Name: IAUC100N10S5N040ATMA1
Brand: Infineon Technologies
SKU: IAUC100N10S5N040ATMA1
Price: 3.33 USD
Availability: InStock

REF: IAUC100N10S5N040ATMA1 Infineon Technologies

IAUC100N10S5N040ATMA1

Infineon Technologies

MOSFET N-CH 100V 100A 8TDSON-34

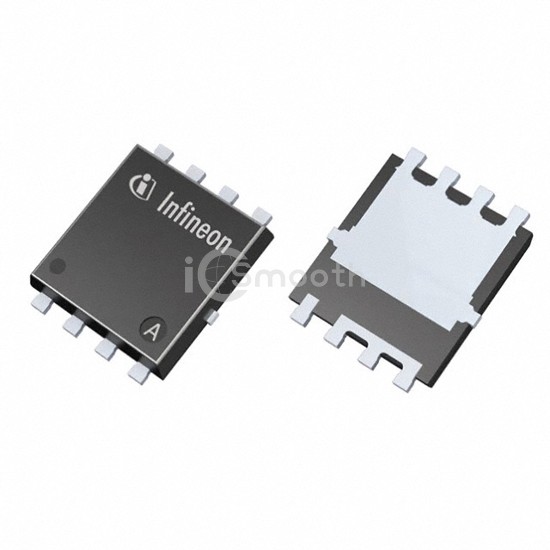

IAUC100N10S5N040ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 100V 100A 8TDSON-34. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,874

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3.8V @ 90µA
Gate Charge (Qg) (Max) @ Vgs	78 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5200 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	167W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-34
Package / Case	8-PowerTDFN
