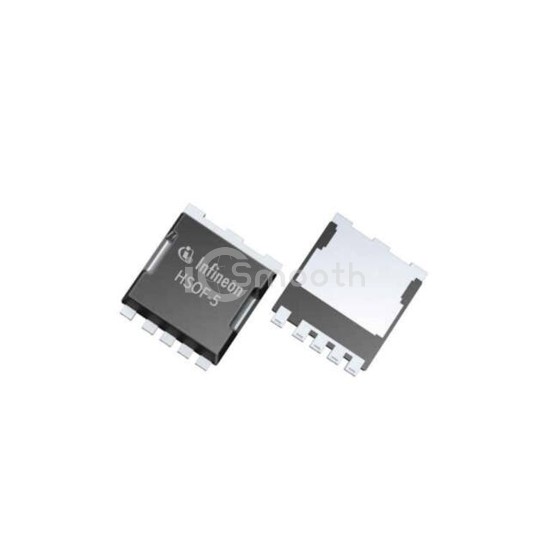

Name: IAUC100N08S5N031ATMA1
Brand: Infineon Technologies
SKU: IAUC100N08S5N031ATMA1
Price: 3.16 USD
Availability: InStock

REF: IAUC100N08S5N031ATMA1 Infineon Technologies

IAUC100N08S5N031ATMA1

Infineon Technologies

MOSFET N-CH 80V 100A TDSON-8-34

IAUC100N08S5N031ATMA1 is a Transistors - FETs, MOSFETs - Single manufactured by Infineon Technologies. MOSFET N-CH 80V 100A TDSON-8-34. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 7,314

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.1mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	3.8V @ 95µA
Gate Charge (Qg) (Max) @ Vgs	76 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5525 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	167W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-34
Package / Case	8-PowerTDFN
