Name: FZ800R33KF2CNOSA2
Brand: Infineon Technologies
SKU: FZ800R33KF2CNOSA2
Availability: InStock

REF: FZ800R33KF2CNOSA2 Infineon Technologies

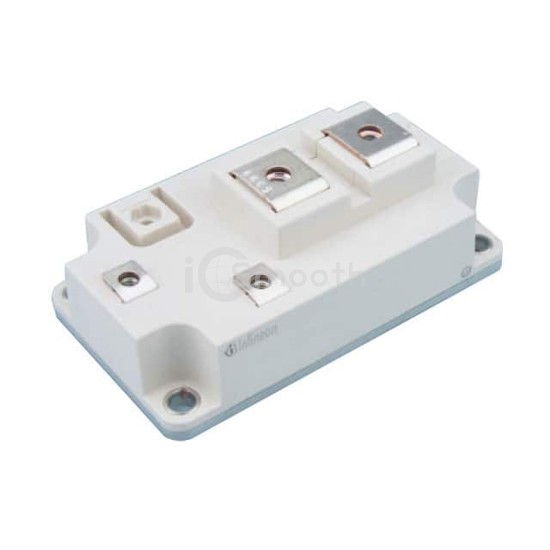

FZ800R33KF2CNOSA2

IGBT MODULE 3300V 1A 9600W

FZ800R33KF2CNOSA2 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 3300V 1A 9600W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case Module, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 5,428

Specifications

15 parameters

Product Status	Last Time Buy
IGBT Type	-
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	3300 V
Current - Collector (Ic) (Max)	1 A
Power - Max	9600 W
Vce(on) (Max) @ Vge, Ic	4.25V @ 15V, 800A
Current - Collector Cutoff (Max)	5 mA

Input Capacitance (Cies) @ Vce	100 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	-
