FZ800R12KE3HOSA1

In Stock: 42

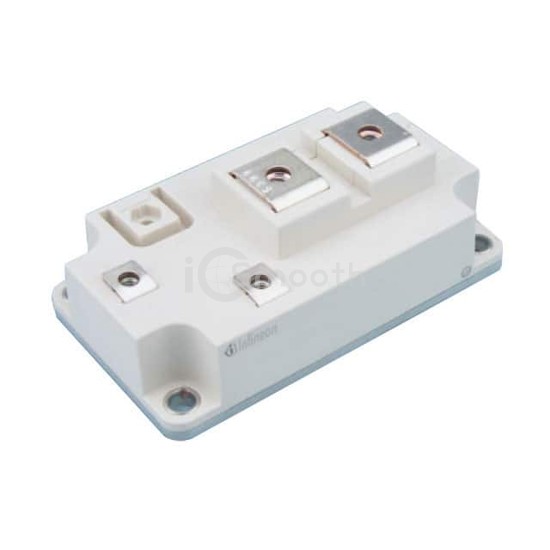

FZ800R12KE3HOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FZ800R12KE3HOSA1 Infineon Technologies
FZ800R12KE3HOSA1

Infineon Technologies

IGBT MOD 1200V 800A 3550W

FZ800R12KE3HOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 800A 3550W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module, current - collector (ic) (max) 800 A.

Datasheet Request a Quote

In Stock: 42

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)800 A
Power - Max3550 W
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 800A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce56 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
