FZ400R12KS4PHOSA1

In Stock: 42

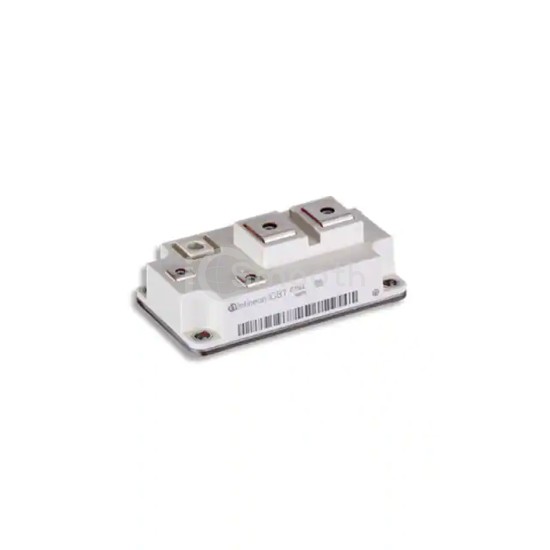

FZ400R12KS4PHOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FZ400R12KS4PHOSA1 Infineon Technologies
FZ400R12KS4PHOSA1

Infineon Technologies

IGBT MODULE 1200V 800A

FZ400R12KS4PHOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 1200V 800A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case Module, current - collector (ic) (max) 800 A.

Datasheet Request a Quote

In Stock: 42

Specifications

15 parameters
Product StatusActive
IGBT Type-
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)800 A
Power - Max-
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 400A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce26 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 125°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
