FZ3600R17HP4B2BOSA2

In Stock: 1

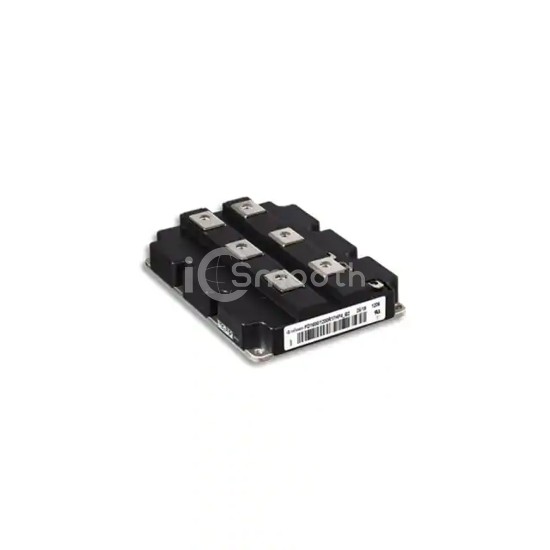

FZ3600R17HP4B2BOSA2 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FZ3600R17HP4B2BOSA2 Infineon Technologies
FZ3600R17HP4B2BOSA2

Infineon Technologies

IGBT MODULE 1700V 3600A

FZ3600R17HP4B2BOSA2 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 1700V 3600A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 3600 A.

Datasheet Request a Quote

In Stock: 1

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle Switch
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)3600 A
Power - Max4900000 W
Vce(on) (Max) @ Vge, Ic2.25V @ 15V, 3.6kA
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce295 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-IHMB190
