FZ3600R17HE4PHPSA1

In Stock: 2,321

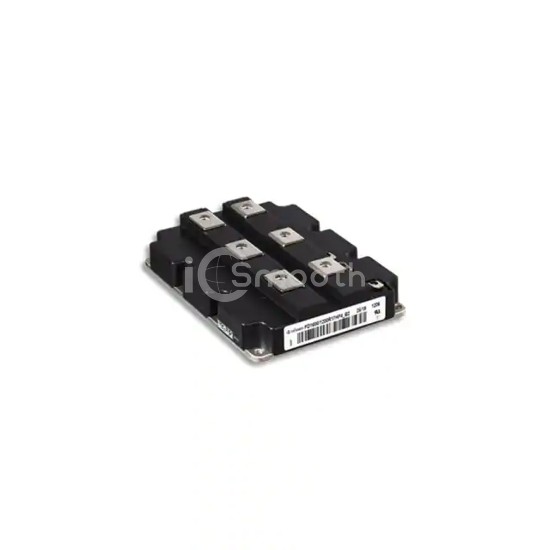

FZ3600R17HE4PHPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FZ3600R17HE4PHPSA1 Infineon Technologies
FZ3600R17HE4PHPSA1

Infineon Technologies

IGBT MODULE 1700V 7200A

FZ3600R17HE4PHPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 1700V 7200A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 7200 A.

Datasheet Request a Quote

In Stock: 2,321

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle Switch
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)7200 A
Power - Max-
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 3600A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce295 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
