FZ2400R12HE4PB9HPSA1

In Stock: 9,122

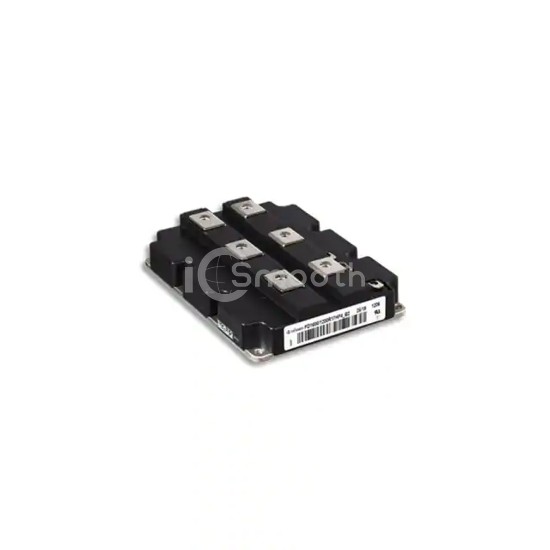

FZ2400R12HE4PB9HPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FZ2400R12HE4PB9HPSA1 Infineon Technologies
FZ2400R12HE4PB9HPSA1

Infineon Technologies

IGBT MODULE 1200V 2400A

FZ2400R12HE4PB9HPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 1200V 2400A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 2400 A.

Datasheet Request a Quote

In Stock: 9,122

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationFull Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)2400 A
Power - Max-
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 2400A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce150 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
