FZ1800R45HL4S7BPSA1

In Stock: 2

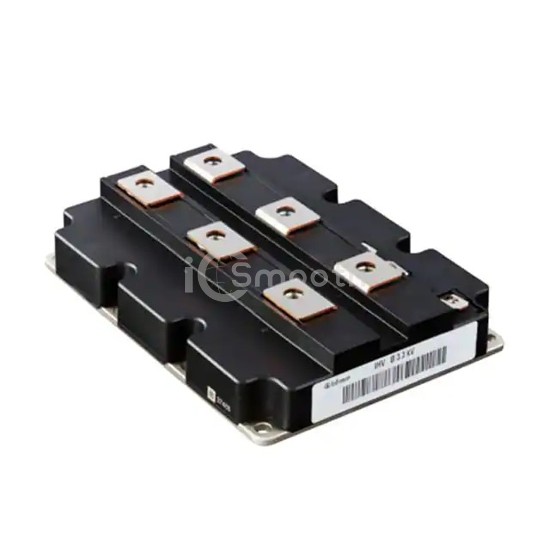

FZ1800R45HL4S7BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FZ1800R45HL4S7BPSA1 Infineon Technologies
FZ1800R45HL4S7BPSA1

Infineon Technologies

IGBT MODULE

FZ1800R45HL4S7BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 1.8 kA.

Datasheet Request a Quote

In Stock: 2

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Configuration-
Voltage - Collector Emitter Breakdown (Max)4500 V
Current - Collector (Ic) (Max)1.8 kA
Power - Max4 MW
Vce(on) (Max) @ Vge, Ic2.6V @ 25V, 1800A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce297 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-IHVB190
