FZ1500R33HE3BPSA1

In Stock: 3

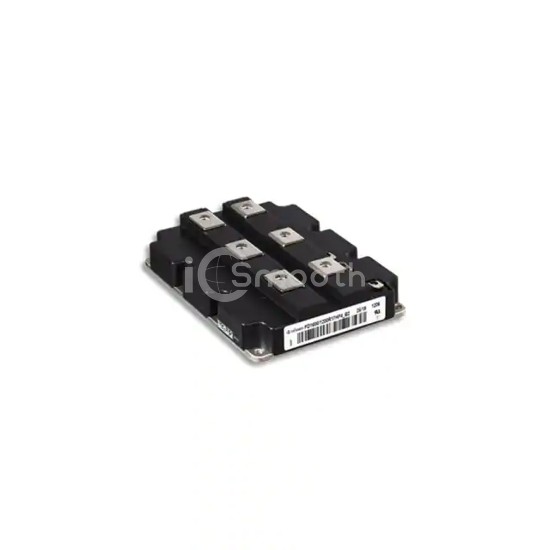

FZ1500R33HE3BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FZ1500R33HE3BPSA1 Infineon Technologies
FZ1500R33HE3BPSA1

Infineon Technologies

IGBT MODULE 3300V 1500A

FZ1500R33HE3BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 3300V 1500A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 1500 A.

Datasheet Request a Quote

In Stock: 3

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationFull Bridge
Voltage - Collector Emitter Breakdown (Max)3300 V
Current - Collector (Ic) (Max)1500 A
Power - Max17000 W
Vce(on) (Max) @ Vge, Ic3.1V @ 15V, 1500A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce280 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
