FZ1400R33HE4BPSA1

In Stock: 2

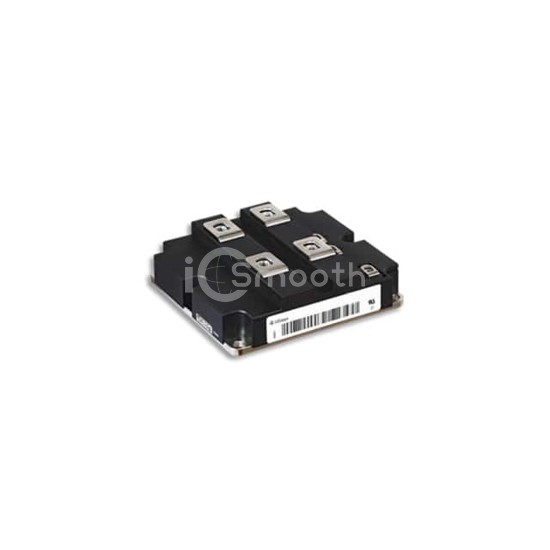

FZ1400R33HE4BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FZ1400R33HE4BPSA1 Infineon Technologies
FZ1400R33HE4BPSA1

Infineon Technologies

IGBT MODULE DIODE HVB130-3

FZ1400R33HE4BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE DIODE HVB130-3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 1400 A.

Datasheet Request a Quote

In Stock: 2

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Configuration2 Independent
Voltage - Collector Emitter Breakdown (Max)3300 V
Current - Collector (Ic) (Max)1400 A
Power - Max-
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 1400A (Typ)
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce187 nF @ 25 V
InputSingle Phase Bridge Rectifier
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
