FZ1200R17HP4HOSA2

In Stock: 6,322

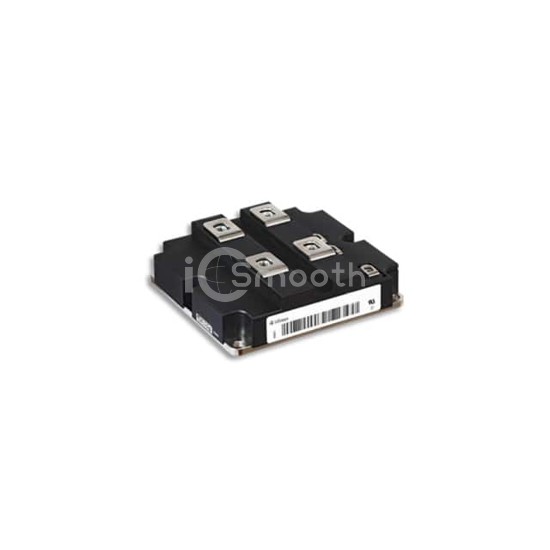

FZ1200R17HP4HOSA2 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FZ1200R17HP4HOSA2 Infineon Technologies
FZ1200R17HP4HOSA2

Infineon Technologies

IGBT MOD 1700V 1200A 7800W

FZ1200R17HP4HOSA2 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1700V 1200A 7800W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 1200 A.

Datasheet Request a Quote

In Stock: 6,322

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench
ConfigurationSingle Switch
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)1200 A
Power - Max7800 W
Vce(on) (Max) @ Vge, Ic2.25V @ 15V, 1200A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce97 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
