FS770R08A6P2BBPSA1

In Stock: 1

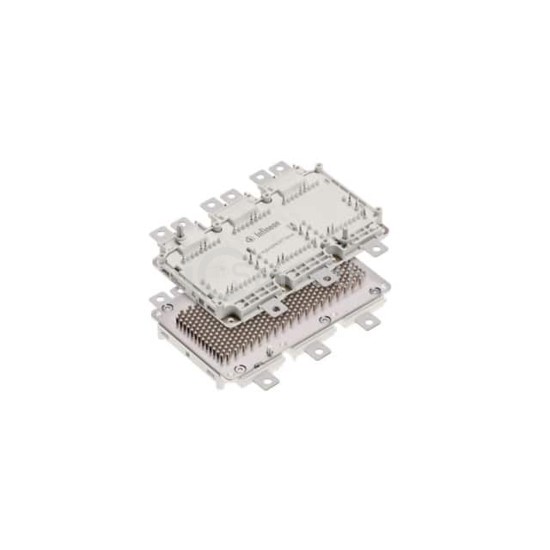

FS770R08A6P2BBPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS770R08A6P2BBPSA1 Infineon Technologies
FS770R08A6P2BBPSA1

Infineon Technologies

HYBRID PACK DRIVE

FS770R08A6P2BBPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. HYBRID PACK DRIVE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 450 A.

Datasheet Request a Quote

In Stock: 1

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)750 V
Current - Collector (Ic) (Max)450 A
Power - Max654 W
Vce(on) (Max) @ Vge, Ic1.35V @ 15V, 450A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce80 nF @ 50 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-HYBRIDD-1
