FS75R12W2T7B11BOMA1

In Stock: 6,988

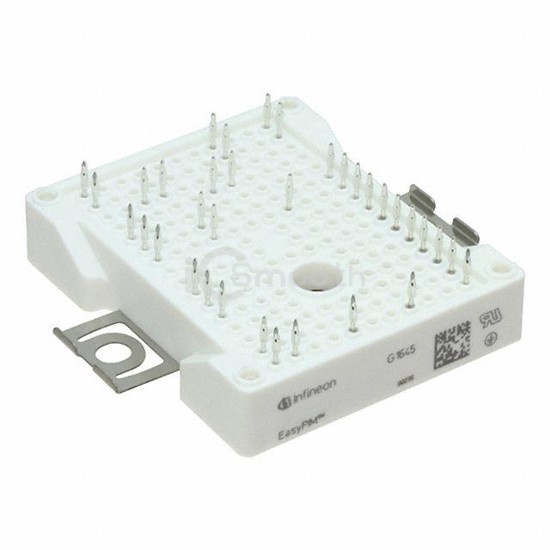

FS75R12W2T7B11BOMA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS75R12W2T7B11BOMA1 Infineon Technologies
FS75R12W2T7B11BOMA1

Infineon Technologies

IGBT MOD 1200V 75A

FS75R12W2T7B11BOMA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 75A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C, package / case Module, current - collector (ic) (max) 65 A.

Datasheet Request a Quote

In Stock: 6,988

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationFull Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)65 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic1.55V @ 15V, 75A (Typ)
Current - Collector Cutoff (Max)13 µA
Input Capacitance (Cies) @ Vce15.1 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 175°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
