Name: FS50R12U1T4BPSA1
Brand: Infineon Technologies
SKU: FS50R12U1T4BPSA1
Availability: InStock

REF: FS50R12U1T4BPSA1 Infineon Technologies

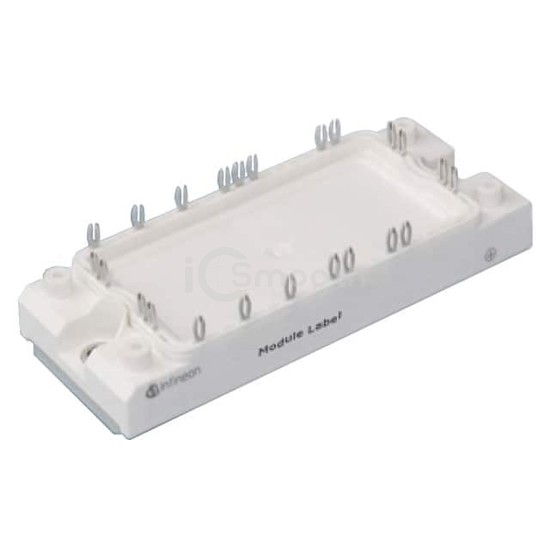

FS50R12U1T4BPSA1

IGBT MOD 1200V 90A 250W

FS50R12U1T4BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 90A 250W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 90 A.

Datasheet Request a Quote

In Stock: 9,136

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	Trench Field Stop
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	90 A
Power - Max	250 W
Vce(on) (Max) @ Vge, Ic	2.15V @ 15V, 50A
Current - Collector Cutoff (Max)	1 mA

Input Capacitance (Cies) @ Vce	100 pF @ 25 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
