FS50R06W1E3BOMA1

In Stock: 48

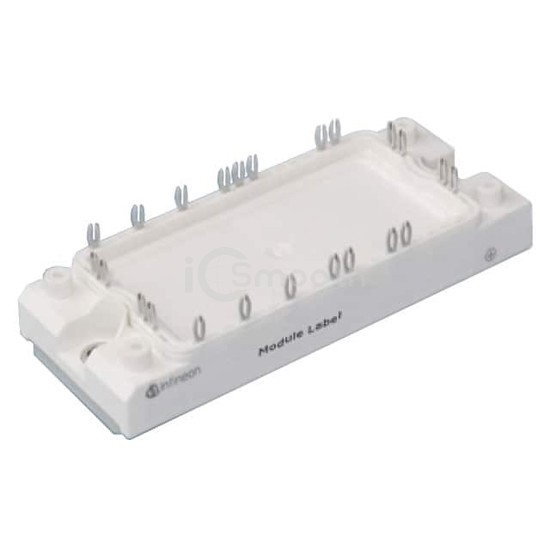

FS50R06W1E3BOMA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS50R06W1E3BOMA1 Infineon Technologies
FS50R06W1E3BOMA1

Infineon Technologies

IGBT MODULE 600V 70A 205W

FS50R06W1E3BOMA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 600V 70A 205W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 70 A.

Datasheet Request a Quote

In Stock: 48

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)70 A
Power - Max205 W
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 50A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce95 pF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
