FS500R17OE4DPBOSA1

In Stock: 8

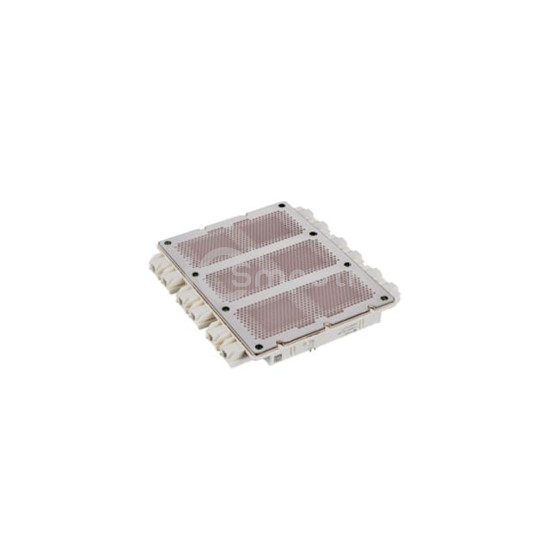

FS500R17OE4DPBOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS500R17OE4DPBOSA1 Infineon Technologies
FS500R17OE4DPBOSA1

Infineon Technologies

IGBT MOD 1700V 1000A 20MW

FS500R17OE4DPBOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1700V 1000A 20MW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 1000 A.

Datasheet Request a Quote

In Stock: 8

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationFull Bridge
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)1000 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 500A
Current - Collector Cutoff (Max)3 mA
Input Capacitance (Cies) @ Vce40 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
