FS500R17OE4DB81BPSA1

In Stock: 4

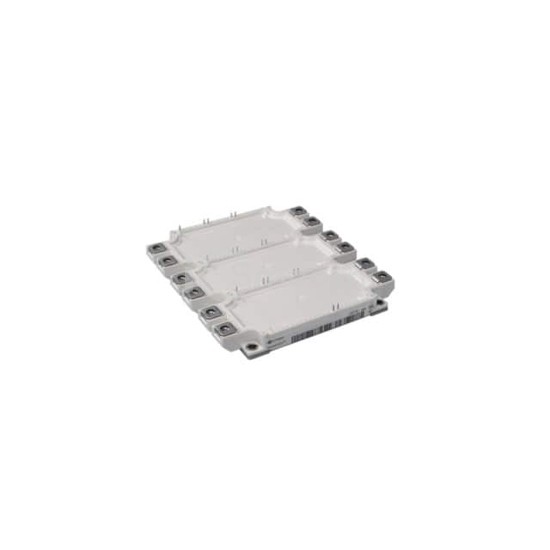

FS500R17OE4DB81BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS500R17OE4DB81BPSA1 Infineon Technologies
FS500R17OE4DB81BPSA1

Infineon Technologies

MEDIUM POWER ECONO

FS500R17OE4DB81BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. MEDIUM POWER ECONO. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 500 A.

Datasheet Request a Quote

In Stock: 4

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)500 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 500A
Current - Collector Cutoff (Max)3 mA
Input Capacitance (Cies) @ Vce40 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-ECONOPP
