FS450R12OE4BOSA1

In Stock: 12

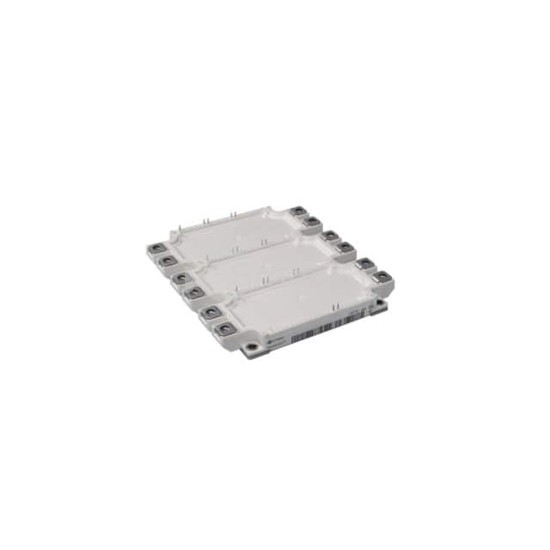

FS450R12OE4BOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS450R12OE4BOSA1 Infineon Technologies
FS450R12OE4BOSA1

Infineon Technologies

IGBT MOD 1200V 660A 2250W

FS450R12OE4BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 660A 2250W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 660 A.

Datasheet Request a Quote

In Stock: 12

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)660 A
Power - Max2250 W
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 450A
Current - Collector Cutoff (Max)3 mA
Input Capacitance (Cies) @ Vce28 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
