FS3L25R12W2H3B11BPSA1

In Stock: 1,991

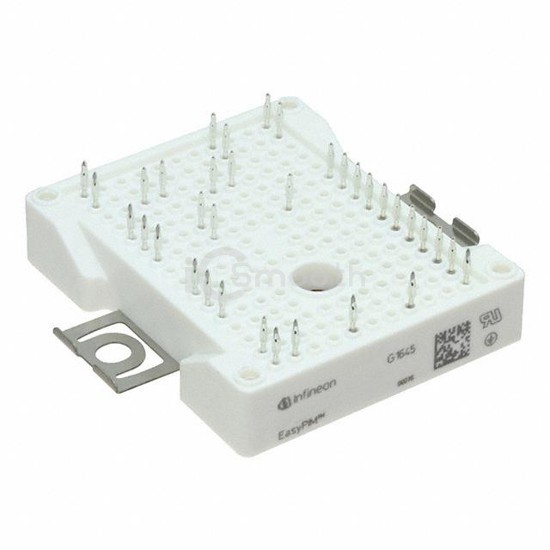

FS3L25R12W2H3B11BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS3L25R12W2H3B11BPSA1 Infineon Technologies
FS3L25R12W2H3B11BPSA1

Infineon Technologies

IGBT MOD 1200V 40A 175W

FS3L25R12W2H3B11BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 40A 175W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 1,991

Specifications

15 parameters
Product StatusActive
IGBT Type-
ConfigurationThree Level Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)40 A
Power - Max175 W
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 25A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce1.45 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
