FS3L100R07W3S5B11BPSA1

In Stock: 3,774

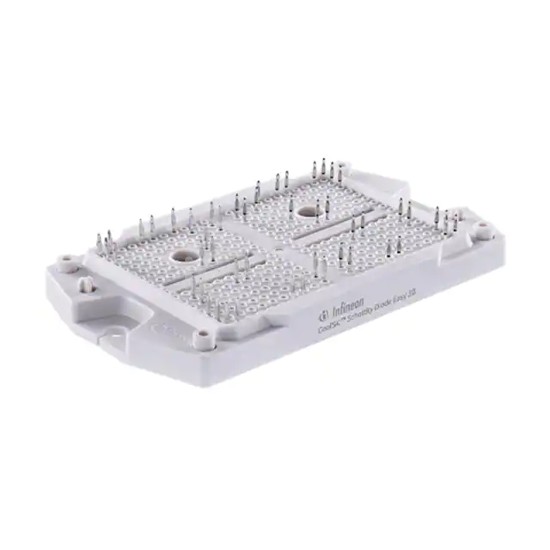

FS3L100R07W3S5B11BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS3L100R07W3S5B11BPSA1 Infineon Technologies
FS3L100R07W3S5B11BPSA1

Infineon Technologies

LOW POWER EASY AG-EASY3B-1

FS3L100R07W3S5B11BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. LOW POWER EASY AG-EASY3B-1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 70 A.

Datasheet Request a Quote

In Stock: 3,774

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Level Inverter
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)70 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic1.38V @ 15V, 50A
Current - Collector Cutoff (Max)7 µA
Input Capacitance (Cies) @ Vce7.1 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-EASY3B
