FS380R12A6T4BBPSA1

In Stock: 4,433

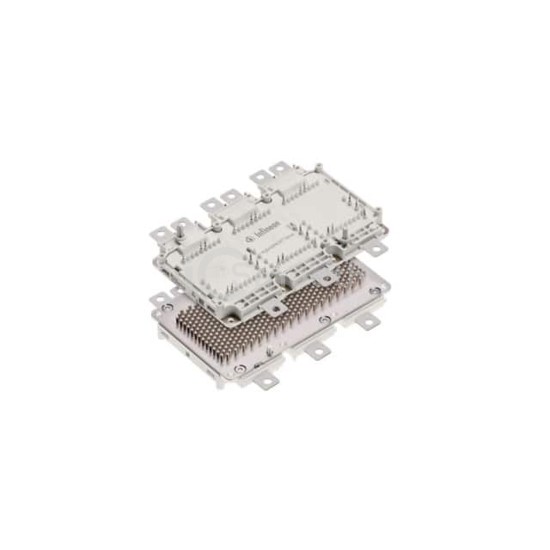

FS380R12A6T4BBPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS380R12A6T4BBPSA1 Infineon Technologies
FS380R12A6T4BBPSA1

Infineon Technologies

IGBT MODULE 1200V 380A

FS380R12A6T4BBPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 1200V 380A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 380 A.

Datasheet Request a Quote

In Stock: 4,433

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)380 A
Power - Max870 W
Vce(on) (Max) @ Vge, Ic1.95V @ 15V, 250A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce-
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-HYBRIDD-1
