FS225R12KE4BOSA1

In Stock: 1,420

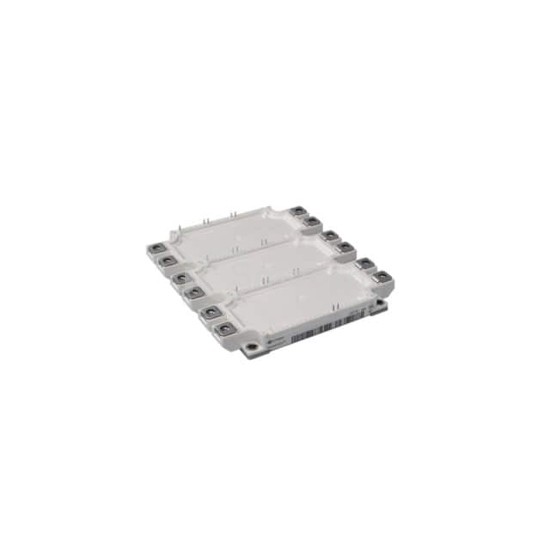

FS225R12KE4BOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS225R12KE4BOSA1 Infineon Technologies
FS225R12KE4BOSA1

Infineon Technologies

IGBT MOD 1200V 320A 1100W

FS225R12KE4BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 320A 1100W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 320 A.

Datasheet Request a Quote

In Stock: 1,420

Specifications

15 parameters
Product StatusNot For New Designs
IGBT TypeTrench Field Stop
ConfigurationFull Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)320 A
Power - Max1100 W
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 225A
Current - Collector Cutoff (Max)3 mA
Input Capacitance (Cies) @ Vce13 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
