Name: FS200R07A1E3BOSA1
Brand: Infineon Technologies
SKU: FS200R07A1E3BOSA1
Availability: InStock

REF: FS200R07A1E3BOSA1 Infineon Technologies

FS200R07A1E3BOSA1

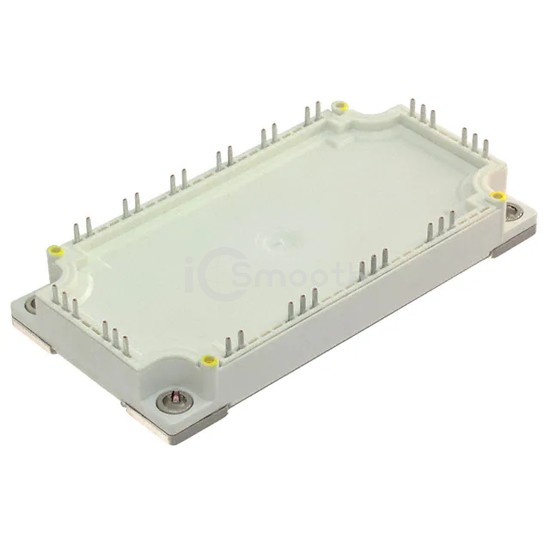

IGBT MOD 650V 250A 790W

FS200R07A1E3BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 650V 250A 790W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 250 A.

Datasheet Request a Quote

In Stock: 9,313

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	250 A
Power - Max	790 W
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 200A
Current - Collector Cutoff (Max)	1 mA

Input Capacitance (Cies) @ Vce	13 nF @ 25 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
