Name: FS200R07A1E3BOMA1
Brand: Infineon Technologies
SKU: FS200R07A1E3BOMA1
Availability: InStock

REF: FS200R07A1E3BOMA1 Infineon Technologies

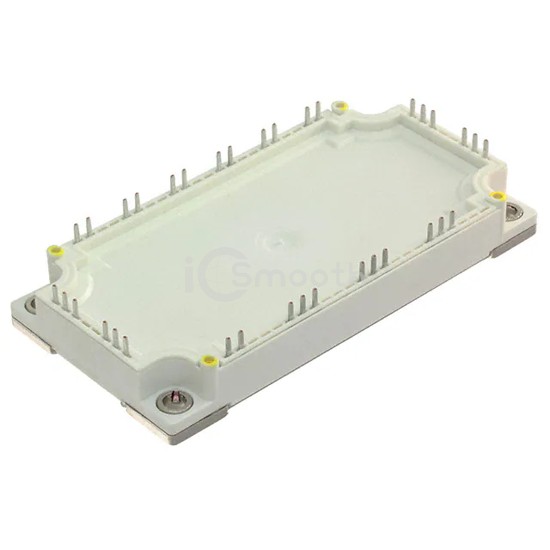

FS200R07A1E3BOMA1

MODULE IGBT HYBRID PK

FS200R07A1E3BOMA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. MODULE IGBT HYBRID PK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 250 A.

Datasheet Request a Quote

In Stock: 2,215

Specifications

15 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	250 A
Power - Max	790 W
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 200A
Current - Collector Cutoff (Max)	1 mA

Input Capacitance (Cies) @ Vce	13 nF @ 25 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	AG-HYBRID1-1
