Name: FS200R07A02E3S6BKSA2
Brand: Infineon Technologies
SKU: FS200R07A02E3S6BKSA2
Availability: InStock

REF: FS200R07A02E3S6BKSA2 Infineon Technologies

FS200R07A02E3S6BKSA2

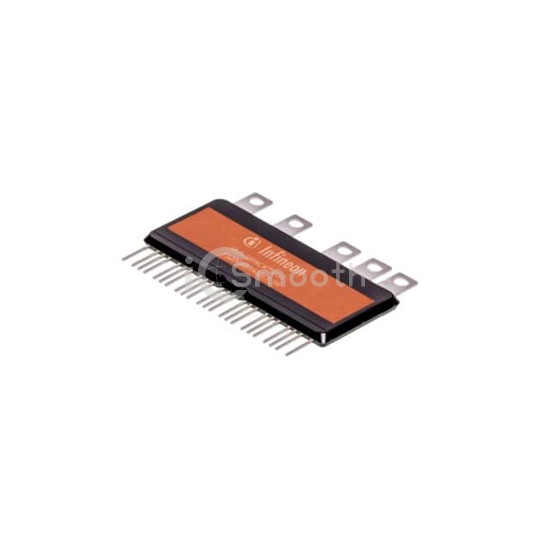

IGBT MODULE HYBRID 28MDIP

FS200R07A02E3S6BKSA2 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE HYBRID 28MDIP. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 200 A.

Datasheet Request a Quote

In Stock: 8,028

Specifications

15 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Configuration	Three Phase
Voltage - Collector Emitter Breakdown (Max)	700 V
Current - Collector (Ic) (Max)	200 A
Power - Max	694 W
Vce(on) (Max) @ Vge, Ic	2.25V @ 15V, 200A
Current - Collector Cutoff (Max)	100 µA

Input Capacitance (Cies) @ Vce	13.5 nF @ 25 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	PG-MDIP-28
