FS15R12VT3BOMA1

In Stock: 2,802

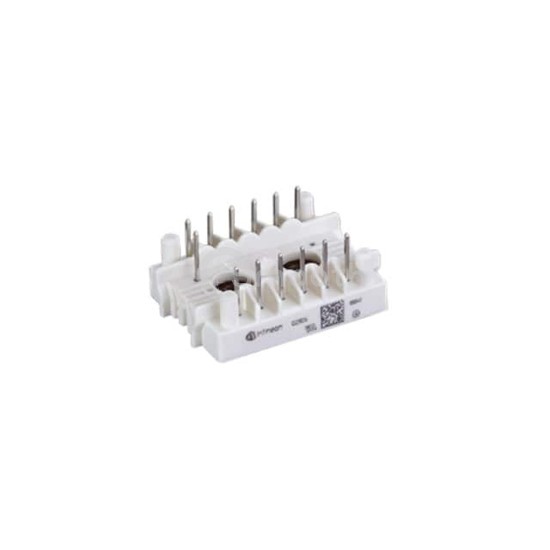

FS15R12VT3BOMA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS15R12VT3BOMA1 Infineon Technologies
FS15R12VT3BOMA1

Infineon Technologies

IGBT MODULE 1200V 24A 86W

FS15R12VT3BOMA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 1200V 24A 86W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case Module, current - collector (ic) (max) 24 A.

Datasheet Request a Quote

In Stock: 2,802

Specifications

15 parameters
Product StatusNot For New Designs
IGBT Type-
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)24 A
Power - Max86 W
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 15A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce1.1 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 125°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
