FS15R06VE3B2BOMA1

In Stock: 8,325

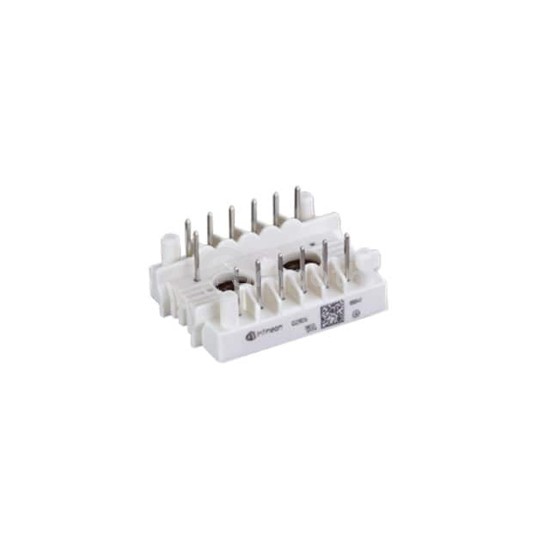

FS15R06VE3B2BOMA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS15R06VE3B2BOMA1 Infineon Technologies
FS15R06VE3B2BOMA1

Infineon Technologies

IGBT MODULE 600V 22A 65W

FS15R06VE3B2BOMA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 600V 22A 65W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 22 A.

Datasheet Request a Quote

In Stock: 8,325

Specifications

15 parameters
Product StatusNot For New Designs
IGBT Type-
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)22 A
Power - Max65 W
Vce(on) (Max) @ Vge, Ic2V @ 15V, 15A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce830 pF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
