FS150R12KE3BOSA1

In Stock: 4,073

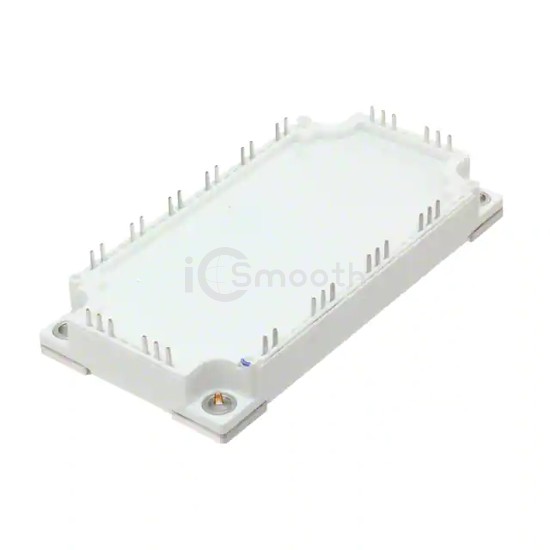

FS150R12KE3BOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FS150R12KE3BOSA1 Infineon Technologies
FS150R12KE3BOSA1

Infineon Technologies

IGBT MOD 1200V 200A 700W

FS150R12KE3BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 200A 700W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module, current - collector (ic) (max) 200 A.

Datasheet Request a Quote

In Stock: 4,073

Specifications

15 parameters
Product StatusActive
IGBT TypeNPT
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)200 A
Power - Max700 W
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 150A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce10.5 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
