FP75R12KT4B15BOSA1

In Stock: 20

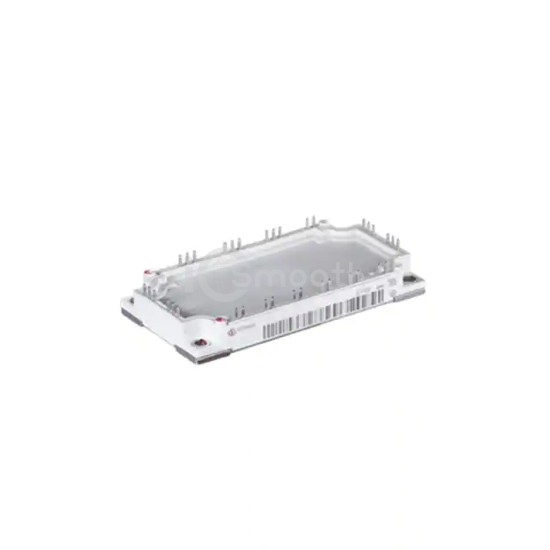

FP75R12KT4B15BOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FP75R12KT4B15BOSA1 Infineon Technologies
FP75R12KT4B15BOSA1

Infineon Technologies

IGBT MOD 1200V 75A 385W

FP75R12KT4B15BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 75A 385W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 20

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)75 A
Power - Max385 W
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 75A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce4.3 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
