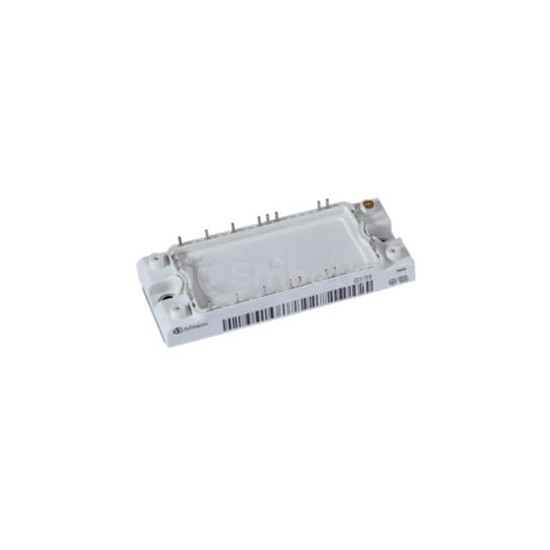

Name: FP50R07N2E4BOSA1
Brand: Infineon Technologies
SKU: FP50R07N2E4BOSA1
Availability: InStock

REF: FP50R07N2E4BOSA1 Infineon Technologies

FP50R07N2E4BOSA1

IGBT MODULE 650V 70A

FP50R07N2E4BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 650V 70A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 70 A.

Datasheet Request a Quote

In Stock: 2,564

Specifications

15 parameters

Product Status	Discontinued at Digi-Key
IGBT Type	Trench Field Stop
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	70 A
Power - Max	-
Vce(on) (Max) @ Vge, Ic	1.95V @ 15V, 50A
Current - Collector Cutoff (Max)	1 mA

Input Capacitance (Cies) @ Vce	3.1 nF @ 25 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
