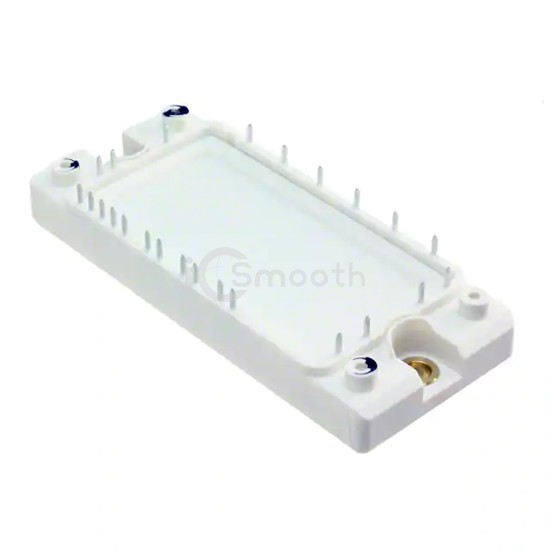

Name: FP50R06KE3BOSA1
Brand: Infineon Technologies
SKU: FP50R06KE3BOSA1
Availability: InStock

REF: FP50R06KE3BOSA1 Infineon Technologies

FP50R06KE3BOSA1

IGBT MODULE 600V 60A 190W

FP50R06KE3BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 600V 60A 190W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 7,972

Specifications

15 parameters

Product Status	Discontinued at Digi-Key
IGBT Type	Trench Field Stop
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	60 A
Power - Max	190 W
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 50A
Current - Collector Cutoff (Max)	1 mA

Input Capacitance (Cies) @ Vce	3.1 nF @ 25 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
