FP40R12KT3BOSA1

In Stock: 3

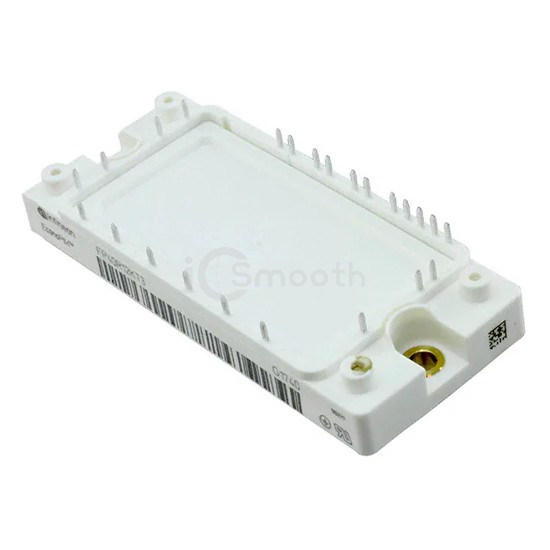

FP40R12KT3BOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FP40R12KT3BOSA1 Infineon Technologies
FP40R12KT3BOSA1

Infineon Technologies

IGBT MOD 1200V 55A 210W

FP40R12KT3BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 55A 210W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case Module, current - collector (ic) (max) 55 A.

Datasheet Request a Quote

In Stock: 3

Specifications

15 parameters
Product StatusDiscontinued at Digi-Key
IGBT Type-
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)55 A
Power - Max210 W
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 40A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce2.5 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 125°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
