FP35R12KT4PBPSA1

In Stock: 8,925

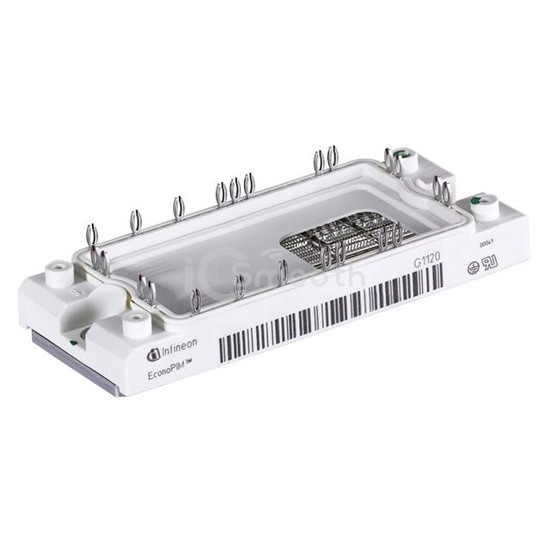

FP35R12KT4PBPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FP35R12KT4PBPSA1 Infineon Technologies
FP35R12KT4PBPSA1

Infineon Technologies

IGBT MOD 1200V 70A 20MW

FP35R12KT4PBPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 70A 20MW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 70 A.

Request a Quote

In Stock: 8,925

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)70 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 35A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce2 nF @ 25 V
InputThree Phase Bridge Rectifier
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
