Name: FP25R12W2T7B11BPSA1
Brand: Infineon Technologies
SKU: FP25R12W2T7B11BPSA1
Price: 57.70 USD
Availability: InStock

REF: FP25R12W2T7B11BPSA1 Infineon Technologies

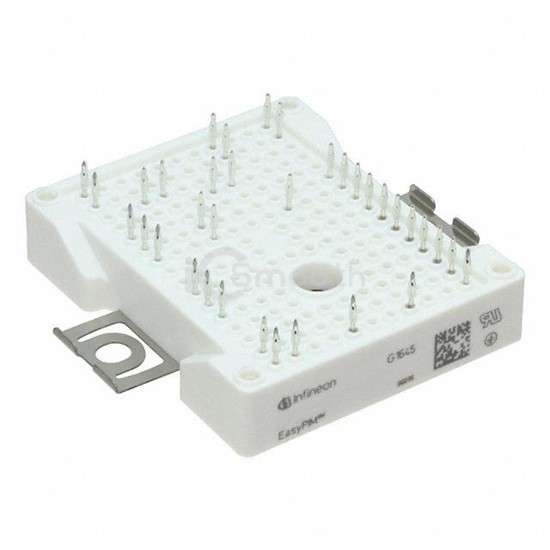

FP25R12W2T7B11BPSA1

Infineon Technologies

LOW POWER EASY

FP25R12W2T7B11BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. LOW POWER EASY. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, current - collector (ic) (max) 25 A.

Request a Quote

In Stock: 13

Specifications

15 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	25 A
Power - Max	20 mW
Vce(on) (Max) @ Vge, Ic	1.6V @ 15V, 25A
Current - Collector Cutoff (Max)	5.6 µA

Input Capacitance (Cies) @ Vce	4.77 nF @ 25 V
Input	Three Phase Bridge Rectifier
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	AG-EASY2B-2
