FP25R12W1T7B11BPSA1

In Stock: 33

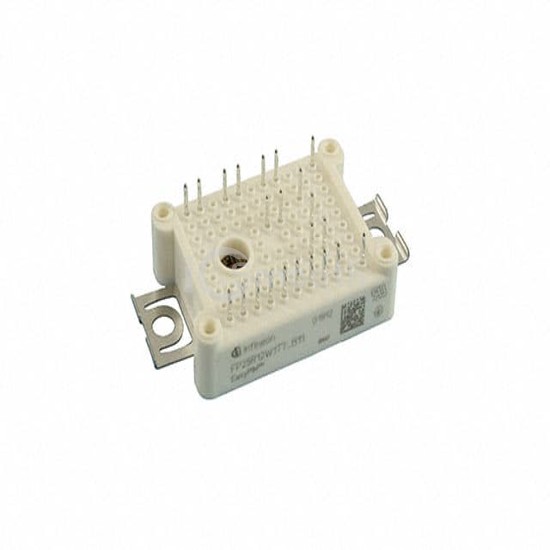

FP25R12W1T7B11BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FP25R12W1T7B11BPSA1 Infineon Technologies
FP25R12W1T7B11BPSA1

Infineon Technologies

IGBT MODULE 1200V 25A 20MW EASY

FP25R12W1T7B11BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 1200V 25A 20MW EASY. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C, package / case Module, current - collector (ic) (max) 25 A.

Datasheet Request a Quote

In Stock: 33

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)25 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic1.6V @ 15V, 25A (Typ)
Current - Collector Cutoff (Max)5.6 µA
Input Capacitance (Cies) @ Vce4.77 nF @ 25 V
InputThree Phase Bridge Rectifier
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-EASY1B-2
