FP25R12U1T4BPSA1

In Stock: 1,227

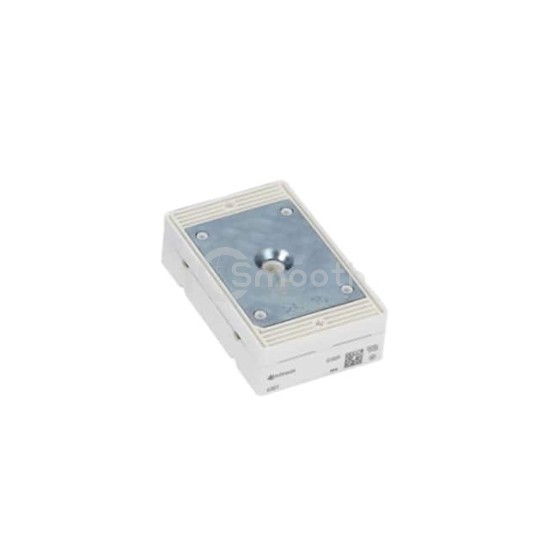

FP25R12U1T4BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FP25R12U1T4BPSA1 Infineon Technologies
FP25R12U1T4BPSA1

Infineon Technologies

IGBT MOD 1200V 39A 190W

FP25R12U1T4BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 39A 190W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 39 A.

Datasheet Request a Quote

In Stock: 1,227

Specifications

15 parameters
Product StatusNot For New Designs
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)39 A
Power - Max190 W
Vce(on) (Max) @ Vge, Ic2.25V @ 15V, 25A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce1.45 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
