FP15R12W1T7PBPSA1

In Stock: 28

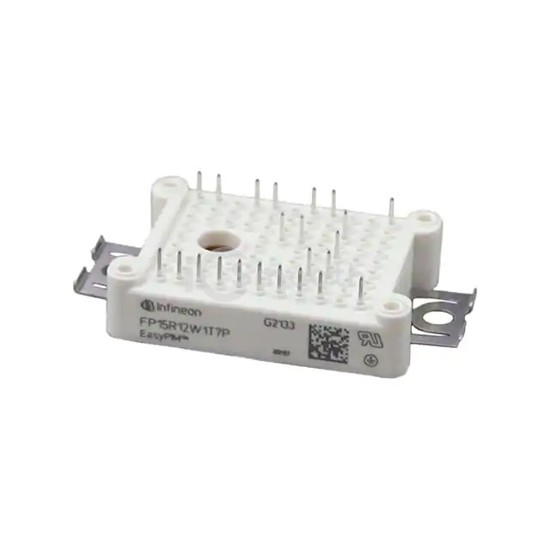

FP15R12W1T7PBPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FP15R12W1T7PBPSA1 Infineon Technologies
FP15R12W1T7PBPSA1

Infineon Technologies

LOW POWER EASY AG-EASY1B-1

FP15R12W1T7PBPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. LOW POWER EASY AG-EASY1B-1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, current - collector (ic) (max) 15 A.

Datasheet Request a Quote

In Stock: 28

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)15 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic-
Current - Collector Cutoff (Max)3 µA
Input Capacitance (Cies) @ Vce2.82 nF @ 25 V
InputThree Phase Bridge Rectifier
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-EASY1B
