FP15R12KT3BPSA1

In Stock: 15

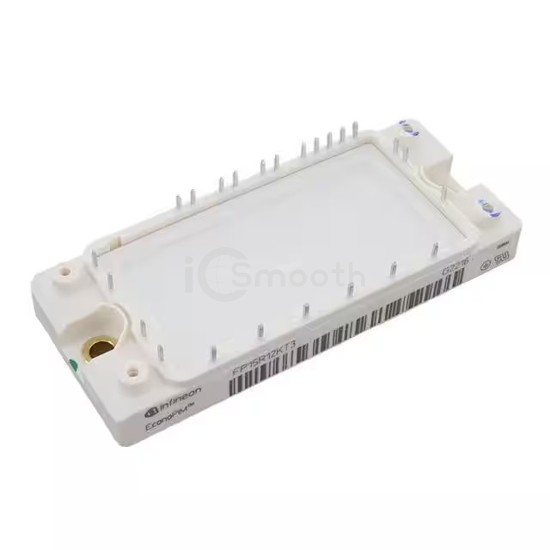

FP15R12KT3BPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FP15R12KT3BPSA1 Infineon Technologies
FP15R12KT3BPSA1

Infineon Technologies

LOW POWER ECONO AG-ECONO2C-311

FP15R12KT3BPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. LOW POWER ECONO AG-ECONO2C-311. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module, current - collector (ic) (max) 25 A.

Datasheet Request a Quote

In Stock: 15

Specifications

15 parameters
Product StatusActive
IGBT Type-
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)25 A
Power - Max105 W
Vce(on) (Max) @ Vge, Ic2.45V @ 15V, 10A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce1.1 nF @ 25 V
InputThree Phase Bridge Rectifier
NTC ThermistorYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-ECONO2C
