FP15R06W1E3B11BOMA1

In Stock: 2,174

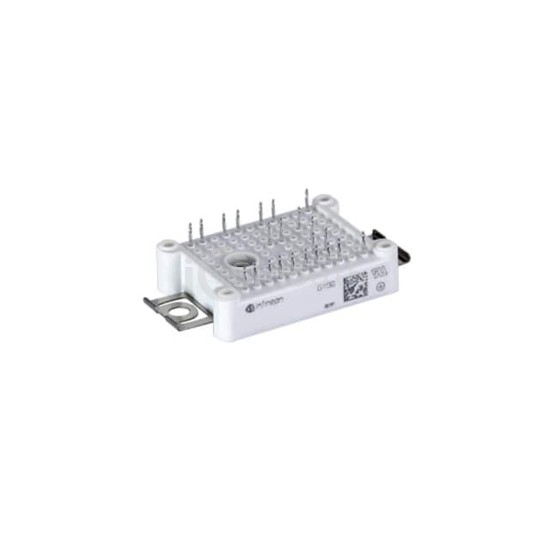

FP15R06W1E3B11BOMA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FP15R06W1E3B11BOMA1 Infineon Technologies
FP15R06W1E3B11BOMA1

Infineon Technologies

IGBT MODULE 600V 22A 81W

FP15R06W1E3B11BOMA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE 600V 22A 81W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 22 A.

Datasheet Request a Quote

In Stock: 2,174

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)22 A
Power - Max81 W
Vce(on) (Max) @ Vge, Ic2V @ 15V, 15A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce830 pF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
