FP10R12W1T7B3BOMA1

In Stock: 6,880

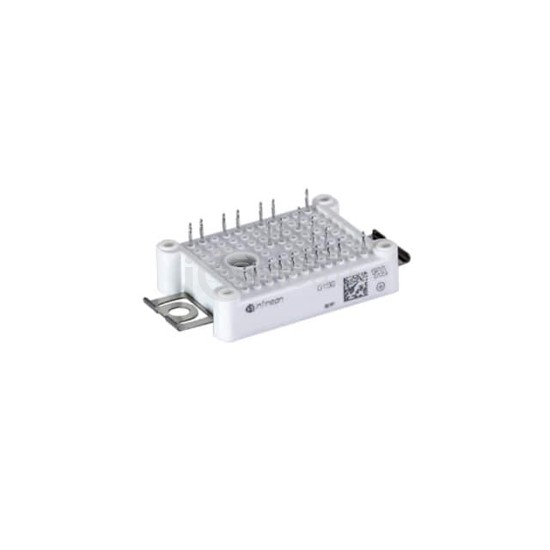

FP10R12W1T7B3BOMA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FP10R12W1T7B3BOMA1 Infineon Technologies
FP10R12W1T7B3BOMA1

Infineon Technologies

IGBT MODULE LOW POWER EASY

FP10R12W1T7B3BOMA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MODULE LOW POWER EASY. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, current - collector (ic) (max) 10 A.

Datasheet Request a Quote

In Stock: 6,880

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)10 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic1.6V @ 15V, 10A (Typ)
Current - Collector Cutoff (Max)4.5 µA
Input Capacitance (Cies) @ Vce1.89 nF @ 25 V
InputThree Phase Bridge Rectifier
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-EASY1B-2
