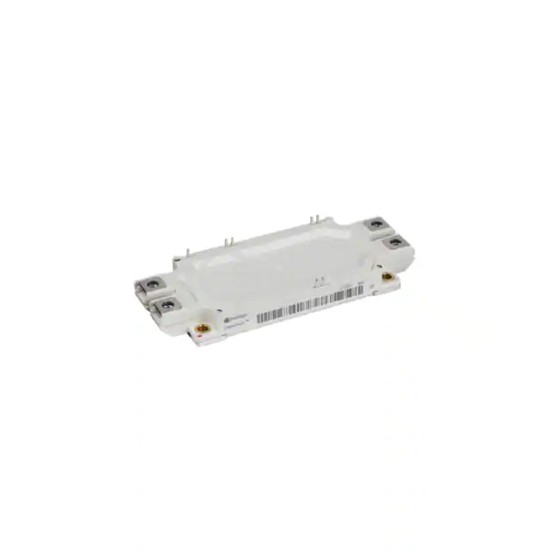

Name: FF600R07ME4B11BOSA1
Brand: Infineon Technologies
SKU: FF600R07ME4B11BOSA1
Availability: InStock

REF: FF600R07ME4B11BOSA1 Infineon Technologies

FF600R07ME4B11BOSA1

IGBT MOD 650V 700A 1800W

FF600R07ME4B11BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 650V 700A 1800W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 700 A.

Datasheet Request a Quote

In Stock: 5,854

Specifications

15 parameters

Product Status	Discontinued at Digi-Key
IGBT Type	Trench Field Stop
Configuration	2 Independent
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	700 A
Power - Max	1800 W
Vce(on) (Max) @ Vge, Ic	1.95V @ 15V, 600A
Current - Collector Cutoff (Max)	1 mA

Input Capacitance (Cies) @ Vce	37 nF @ 25 V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
