FF225R17ME3BOSA1

In Stock: 19

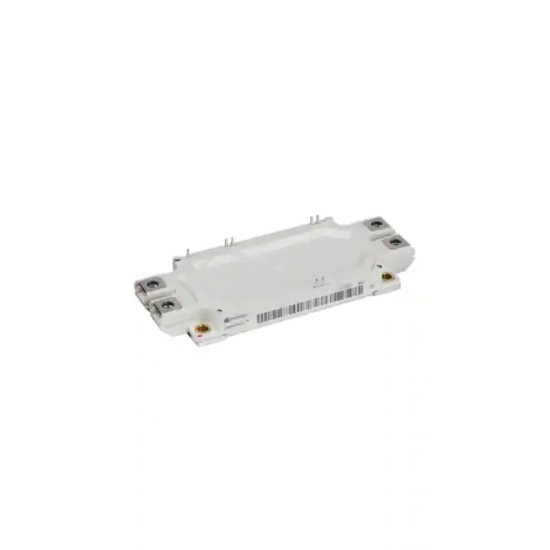

FF225R17ME3BOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FF225R17ME3BOSA1 Infineon Technologies
FF225R17ME3BOSA1

Infineon Technologies

IGBT MOD 1700V 340A 1400W

FF225R17ME3BOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1700V 340A 1400W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case Module, current - collector (ic) (max) 340 A.

Datasheet Request a Quote

In Stock: 19

Specifications

15 parameters
Product StatusNot For New Designs
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)340 A
Power - Max1400 W
Vce(on) (Max) @ Vge, Ic2.45V @ 15V, 225A
Current - Collector Cutoff (Max)3 mA
Input Capacitance (Cies) @ Vce20.5 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 125°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
