FF225R12ME4PBPSA1

In Stock: 4,309

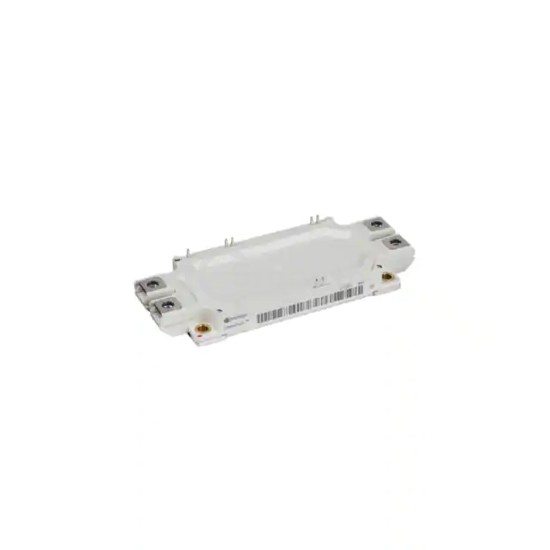

FF225R12ME4PBPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FF225R12ME4PBPSA1 Infineon Technologies
FF225R12ME4PBPSA1

Infineon Technologies

IGBT MOD 1200V 450A 20MW

FF225R12ME4PBPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 450A 20MW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 450 A.

Datasheet Request a Quote

In Stock: 4,309

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)450 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 225A
Current - Collector Cutoff (Max)3 mA
Input Capacitance (Cies) @ Vce13 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
