FF1500R12IE5PBPSA1

In Stock: 3

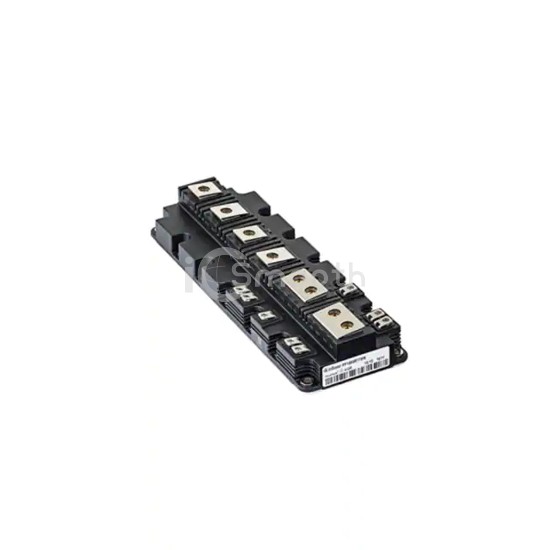

FF1500R12IE5PBPSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FF1500R12IE5PBPSA1 Infineon Technologies
FF1500R12IE5PBPSA1

Infineon Technologies

IGBT MOD 1200V 1500A AGPRIME3+-5

FF1500R12IE5PBPSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 1500A AGPRIME3+-5. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C, package / case Module, current - collector (ic) (max) 1500 A.

Datasheet Request a Quote

In Stock: 3

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)1500 A
Power - Max20 mW
Vce(on) (Max) @ Vge, Ic2.15V @ 15V, 1.5kA
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce-
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 175°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageAG-PRIME3+-5
