FD800R17HP4KB2BOSA2

In Stock: 170

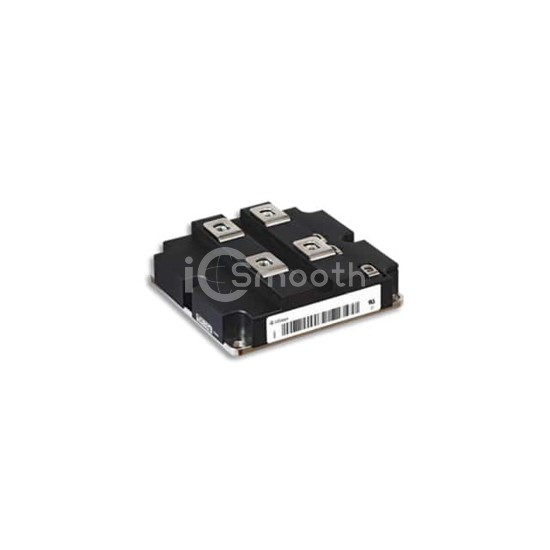

FD800R17HP4KB2BOSA2 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FD800R17HP4KB2BOSA2 Infineon Technologies
FD800R17HP4KB2BOSA2

Infineon Technologies

IGBT MOD 1700V 800A 5200W

FD800R17HP4KB2BOSA2 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1700V 800A 5200W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C, package / case Module, current - collector (ic) (max) 800 A.

Datasheet Request a Quote

In Stock: 170

Specifications

15 parameters
Product StatusActive
IGBT Type-
ConfigurationSingle Chopper
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)800 A
Power - Max5200 W
Vce(on) (Max) @ Vge, Ic2.25V @ 15V, 800A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce65 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
