FD300R12KS4B5HOSA1

In Stock: 536

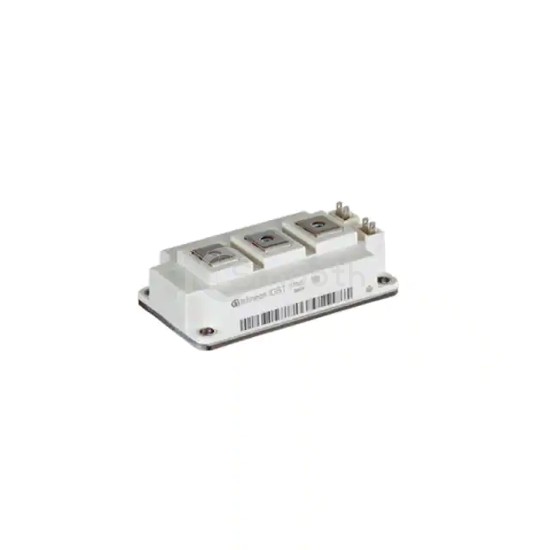

FD300R12KS4B5HOSA1 - Infineon Technologies - Transistors - IGBTs - Modules
REF: FD300R12KS4B5HOSA1 Infineon Technologies
FD300R12KS4B5HOSA1

Infineon Technologies

IGBT MOD 1200V 370A 1950W

FD300R12KS4B5HOSA1 is a Transistors - IGBTs - Modules manufactured by Infineon Technologies. IGBT MOD 1200V 370A 1950W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case Module, current - collector (ic) (max) 370 A.

Datasheet Request a Quote

In Stock: 536

Specifications

15 parameters
Product StatusNot For New Designs
IGBT Type-
ConfigurationSingle Chopper
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)370 A
Power - Max1950 W
Vce(on) (Max) @ Vge, Ic3.75V @ 15V, 300A
Current - Collector Cutoff (Max)5 mA
Input Capacitance (Cies) @ Vce20 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 125°C
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
